ROV RB-Mirage

RB Mirage
price started from € 58 000
(ex. VAT)
Special offer: Free shipping and training (piloting and maintenance) in your place!*
ROV RB-Mirage – a professional model for use on depth up to 500 meters and current speed up to 2 m/s.
* – EU only.
Sample video 2 RB-Mirage
RB Mirage Specification
Dimensions (LxWxH), mm | 1000x695x595 |
Weight, kg | 100 |
Thrusters, kgs | 6 x 10 |
Speed, m/s | 2 |
Working depth, m | 500 |
Cable, m | 600 |
Front camera | USB HD Sony f 2,1 mm 160° |
Resolution | 1920×1080 |
Rear camera | USB HD Sony f 2,1 mm 160° |
Resolution | 1920×1080 |
Camera’s tilt | +/- 90 |
Depth sensor | yes |
Magnetic compass | yes |
Temperature sensor | yes |
Roll / Trim Sensor | yes |
Three-axis accelerometer | yes |
RB-Mirage since 2020 has 4 vector forward thrusters and 2 verticals.
Thanks to vector thrusters RB-Mirage has nice lateral movement capability and excellent stability at strong currents.

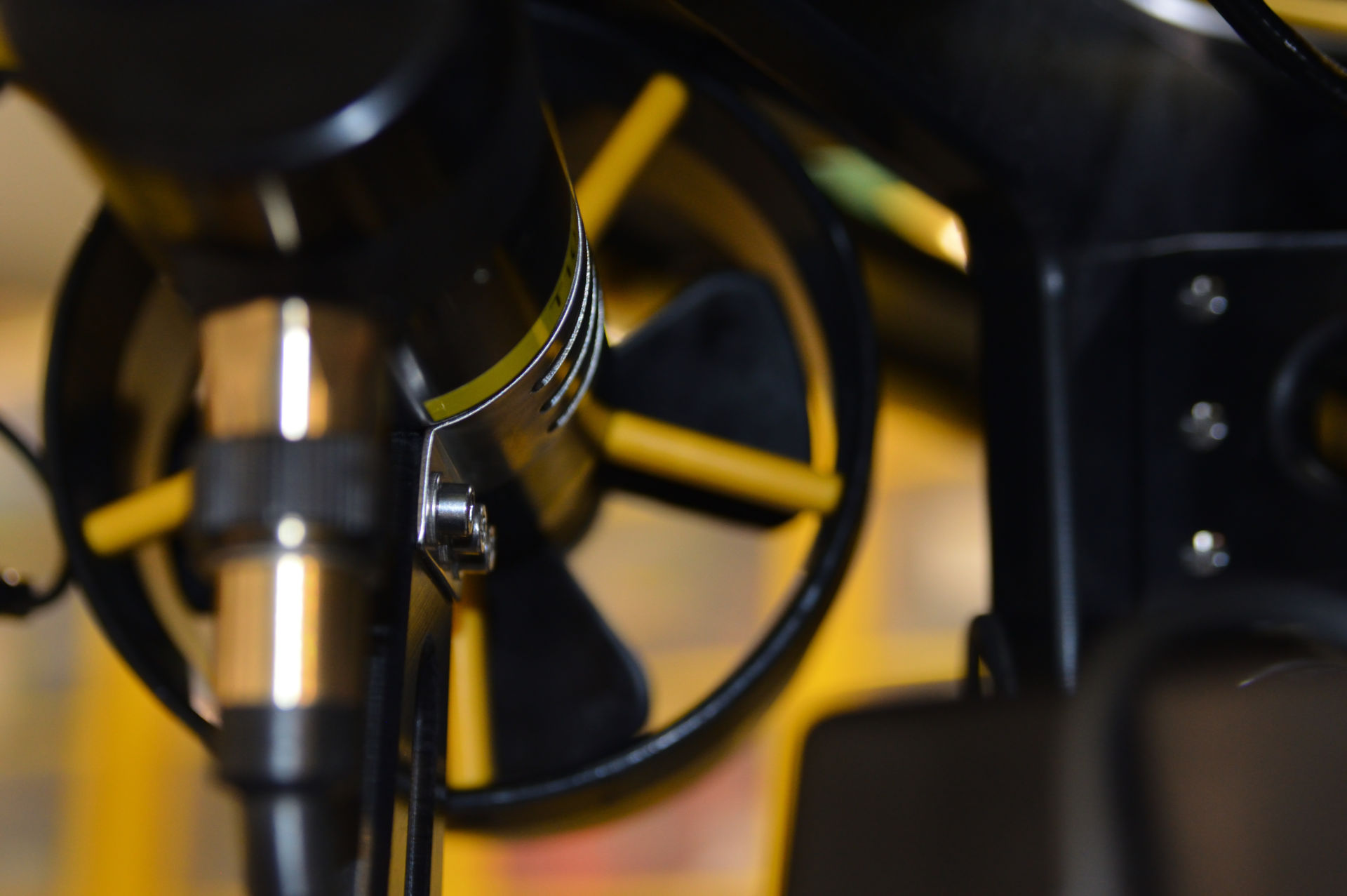

Thrusters are done with dry magnetic couplings. Motors are brushless. The thrust is 10kg in both directions.
A lot of different additional equipment is available. Including multibeam sonar with tilt.
RB-Mirage is digital. We offer a lot of different camera options to mount Mirage frames.
The cable of RB-Mirage can be with copper only or with fiber optic also. Cable without fiber optics can be up to 600 meters and up to 5-10km with fiber optics.
The cable reel can be done with an electrical cable layer.
The power supply of RB-Mirage 5kWt. (in two control boxes 2.5kWt each one, possible use two electric generators 2.5kWt each one)
Light: 20Wt LED RGB -10 ps or more.
A lot of different modifications. Individual order only.
Available options for RB Mirage:
grabber (open/close, rotate ) – € 1 100 (ex. VAT)
laser pointers (2 ps) – € 300 (ex. VAT)
UV lights (3 ps) – € 400 (ex. VAT)
altimeter – € 800 (ex. VAT)
side camera with 2 lights – € 1 100 (ex. VAT)
side camera with 2 lights and tilt- € 1.600 (ex. VAT)
Zoom camera instead of the main camera – by request
Cygnus thickness gauge, CP-probe – by request
Multibeam sonar – by request
Sonar – by request
USBL – by request
Optical cable – by request
Electric cable reel – by request
Cable length counter – by request
Any other payload on request
