ROV RB-100

Price

RB-100А: € 2 900

RB-100D: € 3 400

(ex. VAT)

ROV RB-100 – profi model for use on 30-50 meters depth and current speed up to 0.5m/s.

Can be used by:

  • prof diving companys;
  • fish farmers;
  • diving centers;
  • fisherman`s and yachters;
  • hydrografs etc.

Sample video RB-100D

Presentation RB-100A

We have two kinds of RB-100:

  1. Analog RB-100 with GOPRO videocamera (RB-100A).
  2. 2.Digital RB-100 with HD videocamera (RB-100D).

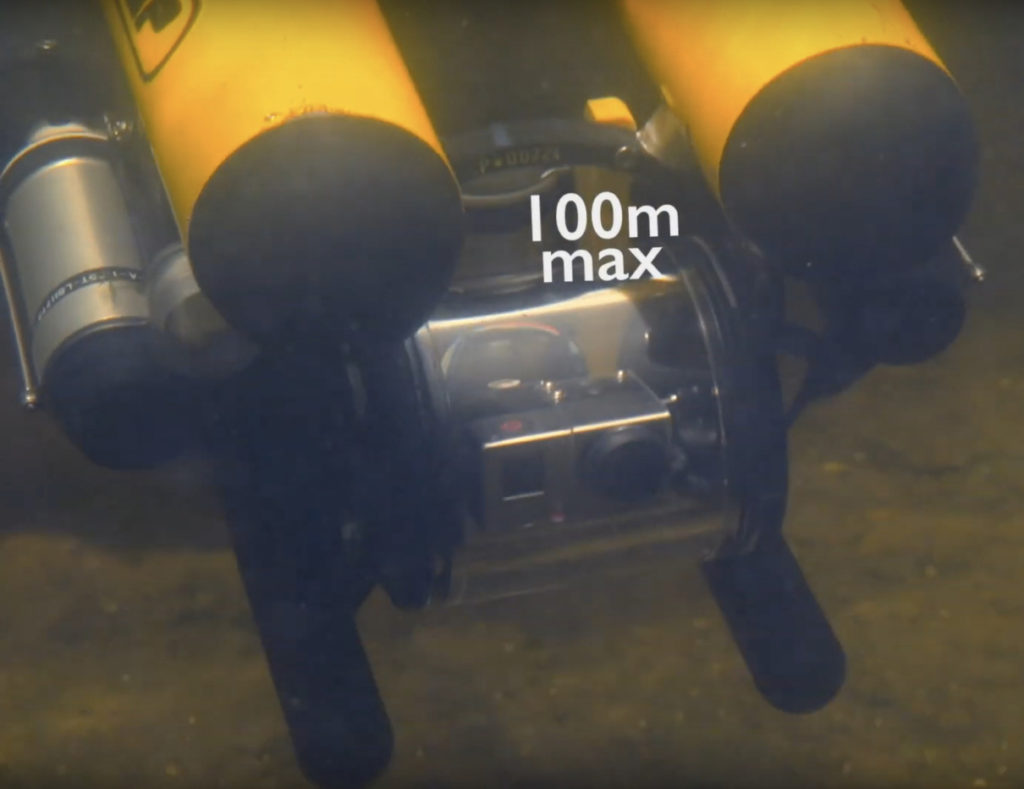

RB-100A

This model uses videocamera GOPRO HERO 3+ BLACK EDITION ( 64Gb micro SD).

Its one of the best videocamera`s for clean or dirty water.

Videofilming up to 4K (15fps) or 60 fps at 1920×1080. Foto picturing– up to 12Mps .

Videocamera has TILT function in ROV`s hermetic housing with ±90 angle.

Both GOPRO control buttons are duplicated to joystick. It gives possibility to switch ON/OFF recording or change any GOPRO settings from joystick.

Its possible to download video files from GOPRO via special connector or via WI-FI.

Gopro sends analog videosygnal to control panel. Its possible use RCA connector on control panel for recording analog video with telemetry by external recording device(not included).

The main disadvantages of this option:

  • no telemetry on the downloaded video from GOPRO camera
  • you should download video from camera everytime after job

The main plus`s:

  • the best possible videoquality for ROV of such dimensions
  • possibility make high quality pictures

RB-100D

This model uses digital HD videocamera with fixed focus , which sends digital HD  (1280*720) video to control panel. There is a PC installed to control panel based on Intel NUC. Its uses OS linux(Ubuntu).

This digital HD video with colour telemetry text and graphics permanetly records to hard disk and uses for ROV control by monitor.

The main disadvantages of this option:

  • video quality are less than GOPRO provides by resolution and quality

The main plus`s:

  • video records goes with telemetry
  • there is no need to download video every time after job — you can do it anytime using flash drive and USB connector on control panel
  • there is a possibility to choose hard disk volume and type (typically SSD 60Gb)
  • there is a full function PC in control panel — it allows not only records video but also sign and view it
  • there is a possibility to overlay on the video absolute coordinates of ROV using our USBL
  • it uses more complicated USB joystick SONY PS4.
  • there is an overlay of adittional sensors ( outside temperature, pitch-roll and etc)
  • it has flexible overlay — possibility to change of its color , size and location
  • the source code of control panel is open, its uses Python

Model uses neutral  buoyancy re-inforced with kevlar umbilical (cable) (8mm diameter, 100 meters long). By order it can be supplied with 4mm diameter ultra-thin cable  up to 300 meters long (  neutral  buoyancy re-inforced with kevlar) – but its not recomended for every day use

Attention — HIGH VOLTAGE in the cable, Usage prohibited with damaged cable!

Available options for RB-100:

  • grabber (open/close, rotate ) – € 1 100 (ex. VAT)
  • lazer pointers(2 ps) – € 300 (ex. VAT)
  • UV lights (3 ps) – € 400 (ex. VAT)
  • underwater rifle  (one shot, arrow on the rope) – 100 (ex. VAT)
  • sonar, USBL – by request

Model doesn’t require any technical service.
